Sonore ultraDigital USB to SPDIF and LVDS i2s

£495.00

Very high quality USB to SPDIF and LVDS i2s converter allows you to drive a top quality DAC or streamer from a USB endpoint such as ultraRendu

3 in stock (can be backordered)

SKU: 51 Categories: ,

Description

ultraDigital UK stock

USB to SPDIF and LVDS i2s converter

The Sonore ultraDigital project is a very high quality USB digital converter with SPDIF output via BNC and a LVDS i2s output via HDMI. The LVDS i2s output supports various formats for compatibility with various digital to analog converters (See table)

For use with Sonore microRendu, ultraRendu, Signature Rendu SE and our servers. Please note that there is no support for direct connection to OS X or Windows

ultraDigital employs galvanic isolation and re-clocking to reduce jitter

ultraDigital is self-powered from the USB port

Features

  • 1. SPDIF output via BNC: PCM 44.1K-192K, DSD64 via DOP
  • 2. LVDS i2s output via HDMI: PCM: 44.1K-384K, native DSD: DSD64, DSD128, DSD256, DSD512
  • 3. USB input support PCM, DSD via DoP, and native DSD via Linux
  • 4. No drivers needed for Linux and OS X
  • 5. Power input: Powered from USB Bus (No PSU)
  • 6. Selectable LVDS i2s output formats via HDMI: Gustard, PS Audio, Holo Audio, L.K.S., Wyred4Sound, Mola Mola, etc
  • 7. Selectable master clock output rate (for DIY use only)

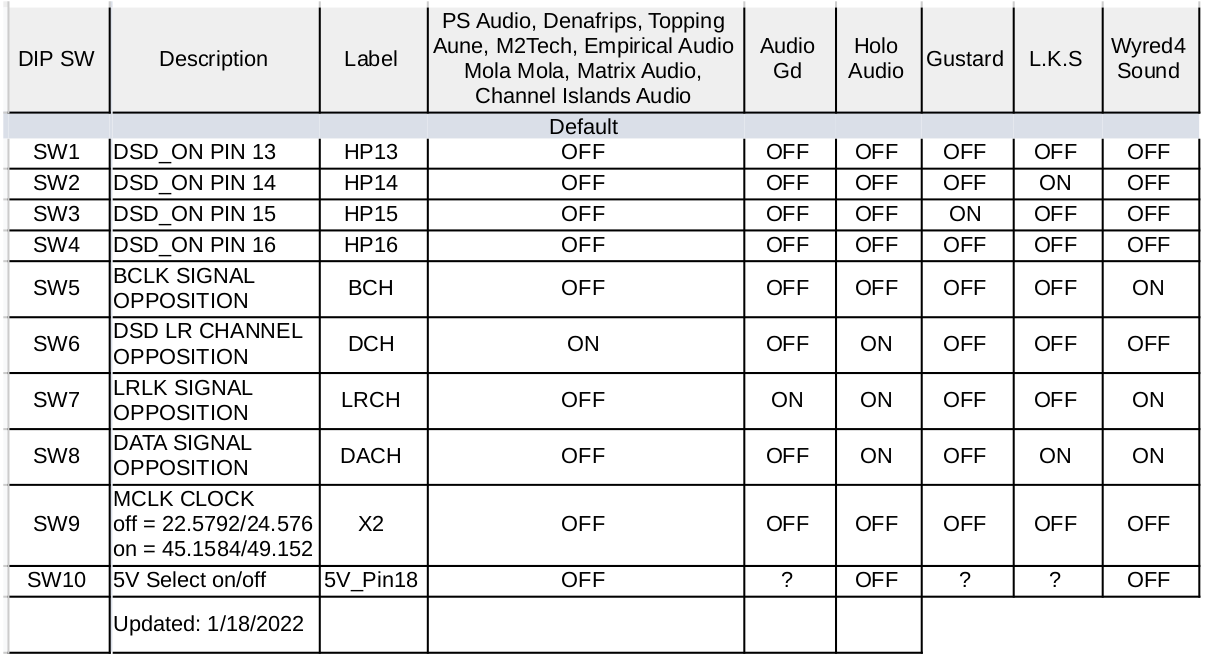

i2s: ultraDigital Switch settings

Our demo Holo Spring 3 DAC works with the default HDMI, i2s connection (no setting required)

Link to Google spreadsheet:
https://docs.google.com/spreadsheets/d/1h5PMUBkldk…

13th Note review of HoloSpring DAC with opticalRendu and ultraDigital

Additional information

Weight 350 g
Dimensions 26 × 24 × 8 cm
